| Model |

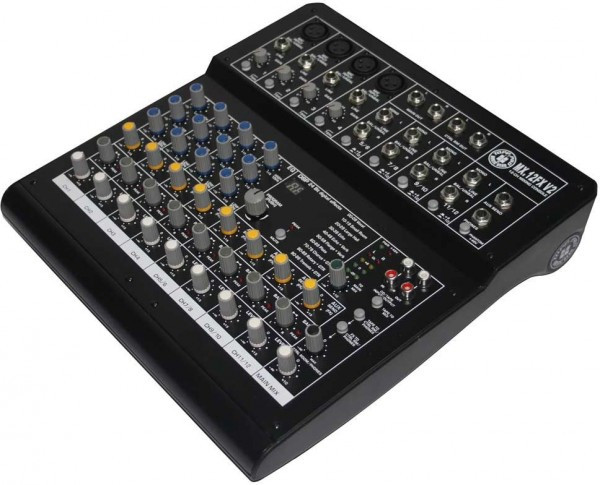

MX.12FX V2 |
| Frequency Response |
Mic Input to any Output
(Gain @ 0 dB, Rated output level) |
20 Hz to 50 kHz(0, -1dB)
20 Hz to 130 kHz(0, -3dB) |
|
| Distortion (THD&N) |
Mic Input to MAIN Output(Gain @ 0 dB,
Rated output level @ 20 Hz-20 kHz bandwidth) |
0.003%(A-weighted) |
|
| MIC EIN (Equivalent Input Noise) |
Input: Channel INPUT MIC
(Rs = 150 Ohm ,Gain @ Max.,20 Hz-20 kHz bandwidth) |
119dBu (A-weighted) |
|
| Input Gain Control Range (20 Hz-20 kHz bandwidth) |
| Mono Channel |
MIC: 0 to 48dB, LINE: -33 to +15dB |
| Stereo Channel |
LINE: -8 to +6dB |
|
| Attenuation (Crosstalk) (20 Hz-20 kHz bandwidth) |
| Line in, 1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter,Gain @ unity |
| Main Mix knob/fader @ -8 |
-87dBu(A-weighted) |
| Channel Level knob/fader @ -8 |
-85dBu(A-weighted) |
|
| Rated Output Level |
Main, Aux, Control Room output
(all knob/fader @ 0 dBu,1 kHz) |
0dBu |
|
| Maximum Output Level |
Main, Aux, Control Room output(all knob/fader
@ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%) |
+20dBu |
|
| Maximum Voltage Gain (EQ and PAN/BAL knob @ 0 dB, Other all knob or fader @ max, DFX mute,1 kHz, Rs=600 Ohm) |
| Mono Channel MIC INPUTMAIN OUT (1/4" TRS Unbalanced) |
74dBu |
| Mono Channel MIC INPUTPHONES (1/4" TRS Stereo) |
84dBu |
| Mono Channel MIC INPUTAUX SEND (1/4" TRS Unbalanced) |
79dBu |
| Mono Channel MIC INPUT TAPE OUT (RCA) |
74dBu |
| Mono Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced) |
59dBu |
| Stereo Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced) |
33dBu |
| TAPE INPUT MAIN OUT (1/4" TRS Unbalanced) |
10dBu |
|
| Main mix Noise (20 Hz-20 kHz bandwidth) |
| MAIN OUT (all knob/fader @ 0 dBu,22 Hz 22 kHz Filter,Gain @ unity) |
| Main Mix knob/fader @ -8 |
-106dBu (A-weighted) |
| Channel Level knob/fader @ -8 |
| Main Mix knob/fader @ 0dB |
-95dBu (A-weighted) |
| Channel Level knob/fader @ - |
| Main Mix knob/fader @ 0dB |
-93dBu (A-weighted) |
| Channel Level knob/fader @ 0dB |
|
| Input HPF |
| Channel 1-4 |
75Hz, 18 dB/oct |
|
| Equalization (Mono channels) |
| High |
+/-15 dB @12 kHz |
| Mid |
+/-12 dB @2.5 kHz |
| Low |
+/-15 dB @80 Hz |
|
| Internal Digital Effect |
| Presets |
100 |
| Controls |
100-Position PRESET Selector and Mute Switch |
| Display |
Two 7-segment display and Mute/Peak LED Indicator |
| Type of effects |
VOCAL,SMALL ROOM, LARGE HALL, ECHO, ECHO+VERB, FLANGE+VERB, PLATE, CHORUS+GTR,ROTARY+GTR, TREMOLO+GTR |
|
| PEAK Indicator |
| Channel 1-12 |
+17dBu |
| Digital Effect(AUX send) |
+11dBu |
| VU Meters |
+20dBu |
|
| VU Meters |
| Main Left and Right (4-segment) |
Clip (+20), +6, 0, -20 (0 LED=0 dBu) |
|
| Impedance |
| Microphone Input |
2.6k Ohms |
| Line Input |
10k Ohms |
| CD/Tape Input |
22k Ohms |
| Main Outputs |
120 Ohms |
| Ctrl Room, Aux Sends |
120 Ohms |
| Tape Output |
1K Ohms |
| Phones Outputs |
25 Ohms |
|
| Phantom power |
| Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced1=GND,2=HOT,3=COLD) |
+48V |
|
| Power supply |
|
| Power Consumption |
18W |
| Physical |
| Dimension (L*W*H) |
271*259*54.3mm |
| Weight |
Net:1.9kg |
|
